Installation Instructions:
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI and with all local codes and authorities having jurisdiction.
Product is intended for indoor use only.
1. Remove backplane from enclosure prior to drilling. Do not discard hardware.
Note: Make sure that hardware will not interfere with components of the circuit board.
2. Mark and drill desired inlets on the enclosure to facilitate wiring. Maximum NEMA type 4X rated fittings to be used are 0.5 in.
Follow manufacturer's specifications for the appropriate size opening.
Note: Inlets for conduit fittings should only be made on the bottom of the enclosure.
UL Listed NEMA type 4X rated conduit connector/hubs shall be used for the appropriate size inlets.
3. Mounting NEMA4/4X rated enclosure:
Wall mount*: Mount unit in desired location. Mark and drill holes to line up with the top and bottom holes of the enclosure flange.
Secure enclosure with appropriate fasteners (e.g. screws and anchors; bolts and locking nuts, etc.) that are compatible with mounting surface and are of sufficient length/construction to ensure a secure mount (Fig. 2, pg. 2).
Pole Mount: Refer to Figs. 3 - 7, pg. 2.
Note: All inlets for conduit fittings should be on the bottom of the enclosure.
4. To facilitate wire entry utilize weather-tight NEMA rated connectors, bushings, and cable.
Battery Backup:
• T1BXWP1F4D enclosure accommodates up to two (2) 12VDC/7AH batteries.

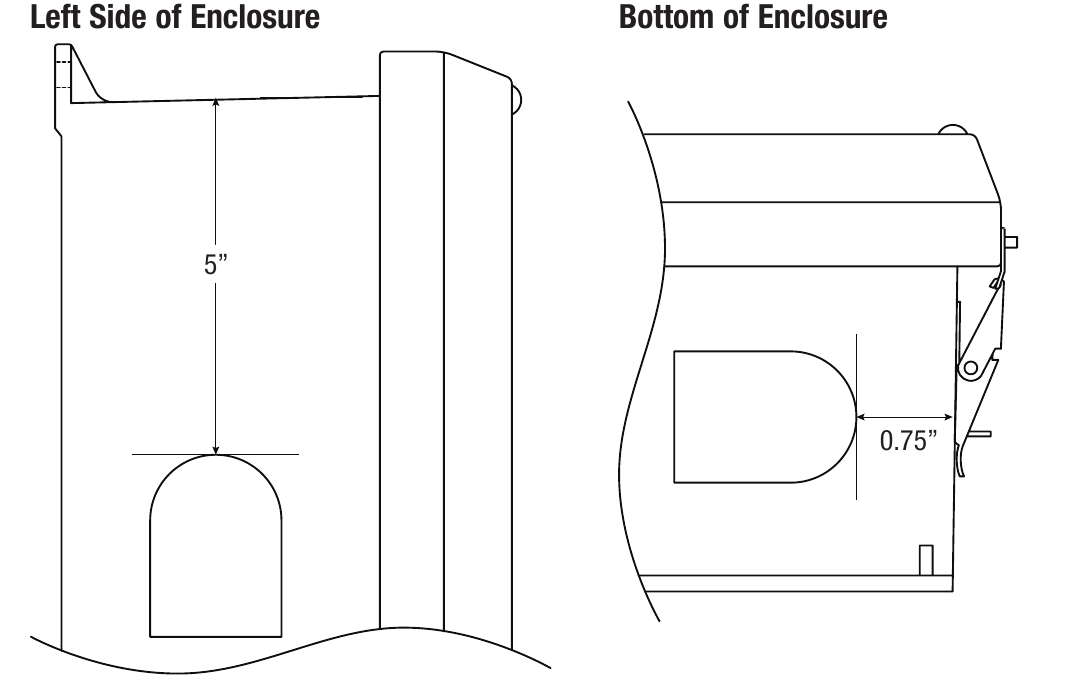

Installing Vent2** on Controller Enclosure - Small:
Fig. 1
1. Using the template from the Vent2 bag, install the vents in the positions shown above.
Accessories (order separately)
*PMK2 Pole Mount Kit
PMK2 pole mount kit is designed to simplify installation of outdoor units. It accommodates 2 in. - 8 in. diameter poles or 5 in. (127 mm) square poles.
Kit includes:
- Two (2) powder coated steel mount brackets.
- Four (4) stainless steel bolts and lock washers.
- Two (2) wormgear quick release straps.
**Vent2 Air Vents For NEMA4/4X Rated Enclosures
Two (2) fiberglass, smooth matte finish vents included with hardware and template.

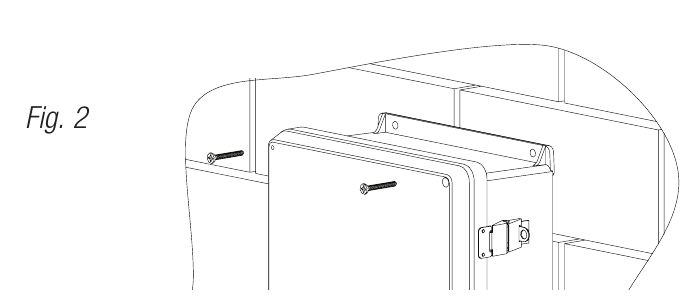

Wall Mount Installation 1- Place unit at desired location and secure with mounting screws (not included) (Fig. 2, pg. 2). |
Pole Mounting Using Optional Pole Mount Kit PMK2 (not included):
This installation should be made by qualified service personnel. This product contains no serviceable parts. PMK2 is intended for use with Altronix outdoor rated power supplies or accessories housed in WP2 enclosures. Brackets are designed for use with the Wormgear Quick Release Straps (two included).

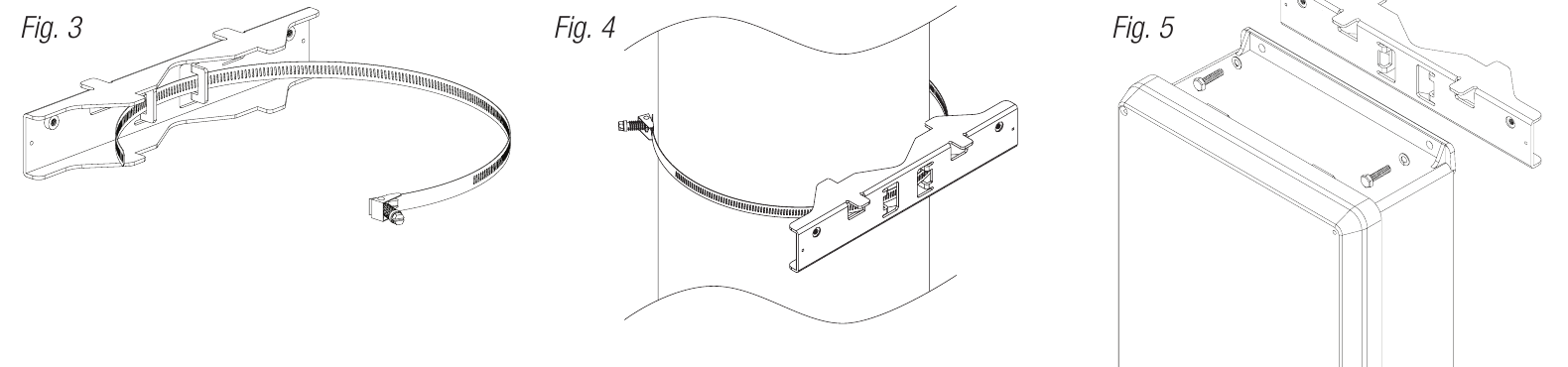

1. Thread one (1) wormgear quick release strap through the slots on the back of a mounting bracket (Fig. 3, pg. 2).
2. Once the desired height of the top Pole Mount bracket is achieved, tighten the straps down by sliding open end of the strap through the locking mechanism on the strap, then tighten the screw with flat head screwdriver or 5/16 in. hex socket driver (Fig. 4, pg. 2 and Fig. 6, pg. 2).
3. Attach the bottom bracket to the enclosure by inserting bolts through the flange of the enclosure and into the bracket, tightening bolts with a 7/16 in. hex socket (Fig. 5, pg. 2).
4. Thread the second wormgear quick release strap through the slots on the back of the bottom mounting bracket (Fig. 3, pg. 2).
5. Mount enclosure onto the top bracket by inserting bolts through flange of the enclosure and into the bracket, tightening bolts with a 7/16 in. hex socket (Fig. 5, pg. 2).
6. Tighten the straps of the bottom bracket down by sliding the open end of the strap through the locking mechanism on the strap, then tighten screw with flat head screwdriver or 5/16 in. hex socket driver (Fig. 3, pg. 2).
7. Clip excess straps.
