ButterflyMX Large Controller Enclosure - Fact Sheet

Product Data Sheet

The ButterflyMX Controller Enclosure – Large gives installers a standardized, professional solution for large multifamily, commercial, and multi-tenant access-control deployments. By consolidating controllers, power, distribution, and wiring organization into one secure enclosure, it reduces custom engineering, installation labor, electrical-room clutter, wiring errors, and future service calls while creating a cleaner, more consistent, and easier-to-maintain installation.

Designed for up to twenty doors, the enclosure includes a backplane, two integrated 24VDC, 10A power supply/chargers, two 16-output PTC or glass-fuse protected power distribution modules, and two voltage regulators. It accommodates up to ten ButterflyMX 2-Door Controllers, with an organized layout that simplifies controller mounting, field wiring, cable management, power distribution, troubleshooting, and ongoing service access

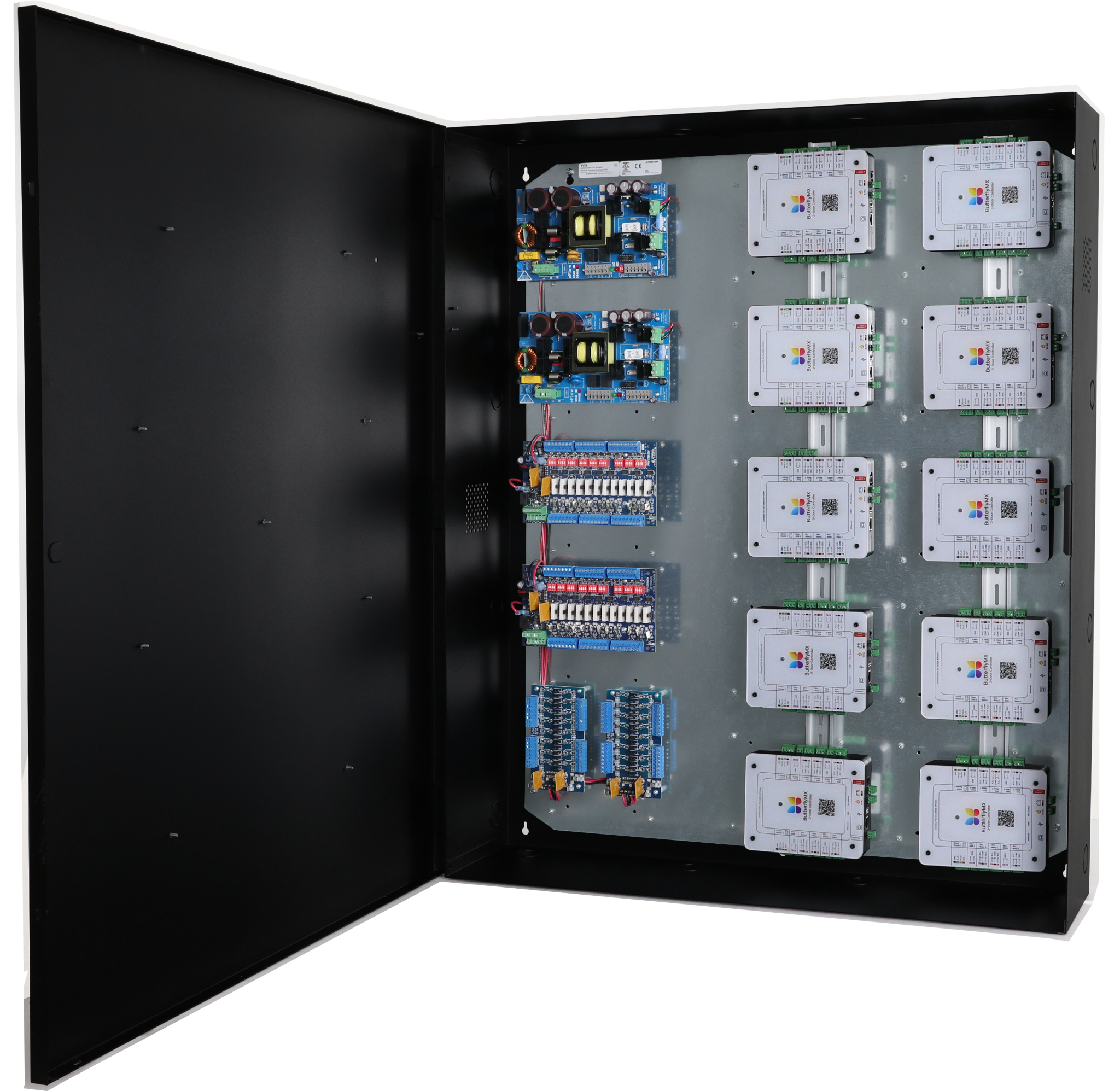

ButterflyMX Large Controller Enclosure (ButterflyMX enclosures are not included)

Key Features

  • Two (2) 24VDC power supply/chargers
  • Accommodates up to ten (10) ButterflyMX modules
  • Supervision:
    • AC Fail
    • Low Battery and Battery Presence
    • Low power shutdown
  • Convenient knockout configuration:
    • One (1) single knockout 2.415” (2” Conduit)
    • Sixteen (16) double knockouts — 1.362” (1” Conduit) / 1.115” (3/4” Conduit)
  • 16 gauge galvanized steel backplane simplifies board layout and wire management
  • Enclosure accommodates up to four (4) 12VDC/7AH batteries
  • Agency Listings:
    • All Altronix components of this Trove kit are UL Listed sub-assemblies. Please refer to the Sub-Assembly Installation Guides for further information
    • UL: UL294 - Access Control System
    • cUL: CAN/ULC - s319-05 - Electronic Access Control Systems
    • CE European Conformity
  • Lifetime Warranty (for Altronix Power Supply/Chargers and Sub-Assemblies only)

Specifications

Two (2) Power Supplies (eFlow104NB)

Input Voltage120VAC, 60Hz, 4.5A max.
Input Fuse6.3A/250V
Output Voltage24VDC @ 10A
Auxiliary1A (unswitched)
ProtectionOvervoltage protection. Filtered and regulated

Battery Charging

Capacity12VDC/12AH (4 within enclosure); 40AH/65AH (requires separate enclosure)
TypeSealed lead acid or gel type
FailoverUpon AC loss, instantaneous

Batteries are sold separately.

Fire Alarm Disconnect

SupervisedLatching or non-latching
EOL10K Resistor

Supervision

AC FailureForm “C” contacts
BatteryForm “C” contacts
Low DC Power ShutdownShuts down DC output terminals if battery voltage drops below 70–75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Indicators (LED)

AC Input120VAC is present
DC OutputPowered
BatteryDischarged or not connected

Two (2) Voltage Regulators (VR6)

Input Voltage24VDC from eFlow104NB
Output Voltage12VDC
Output Current6A continuous
OtherSurge suppression
Indicators (LED)Input: 24VDC is present; Output: Powered

Two (2) Dual Input Power Distribution Modules (PDS16CB)

Input Voltage24VDC from eFlow104NB and 12VDC from VR6
Input PTCs9A
Output Voltage12VDC and/or 24VDC — any of the sixteen (16) power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing.
Output PTCs2.5A
Indicators (LED)Sixteen (16) individual output LEDs — Green: 12VDC; Red: 24VDC

Small Controller Enclosure Certifications

Agency ListingsCE European Conformity

Physical and Environmental

Enclosure Dimensions (H x W x D)36.12” x 30.125” x 7.06” (917.5mm x 768.1mm x 179.3mm)
Shipping Dimensions40.75” x 35.25” x 12” (1035.1mm x 895.4mm x 304.8mm)
Product Weight (approx.)84.2 lb. (38.2 kg)
Shipping Weight (approx.)97.5 lb. (44.22 kg)
Operating Temperature0ºC to 49ºC (32ºF to 120ºF)
Storage Temperature–20ºC to 70ºC (–4ºF to 158ºF)
Relative Humidity85% +/– 5%
BTU/Hr (approx.)246 BTU/Hr.

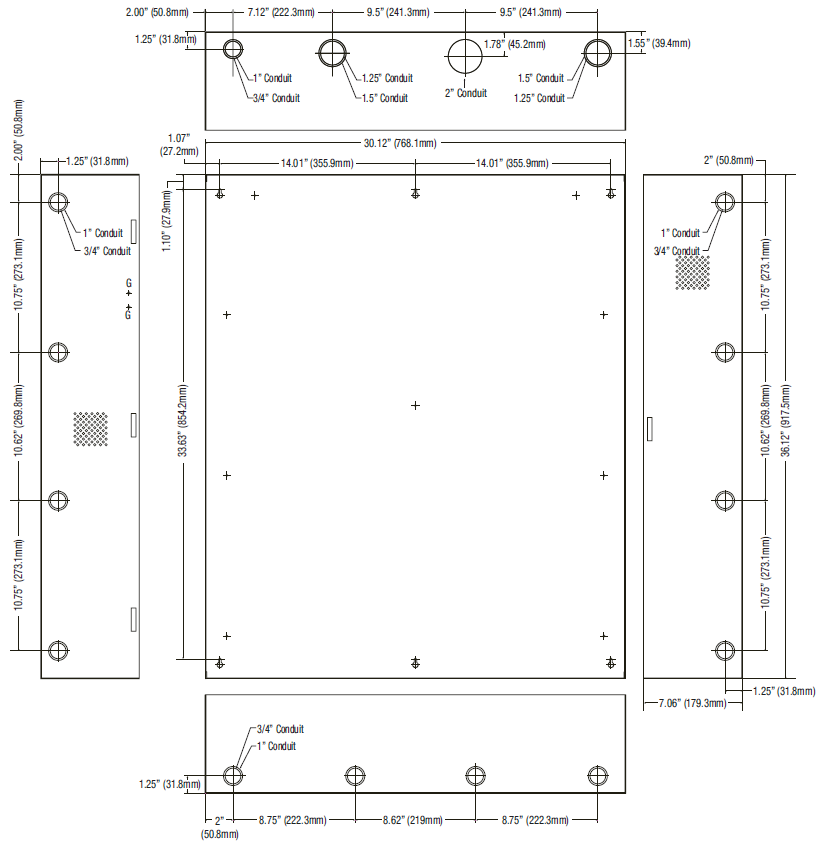

Dimensions and Drawing (Key Callouts)

  • Overall: 36.12” (917.5mm) H x 30.12” (768.1mm) W x 7.06” (179.3mm) D
  • Backplane/layout reference: 33.63” (854.2mm) height reference
  • Conduit knockout sizes shown: 2”, 1.5”, 1.25”, 1”, and 3/4” conduit positions
  • Horizontal references: 14.01” (355.9mm) x2, 10.75” (273.1mm) x2, 10.62” (269.8mm), 9.5” (241.3mm) x2, 8.75” (222.3mm) x2, 8.62” (219mm), 7.12” (222.3mm)
  • Edge/spacing references: 2.00” (50.8mm), 1.78” (45.2mm), 1.55” (39.4mm), 1.25” (31.8mm), 1.10” (27.9mm), 1.07” (27.2mm)

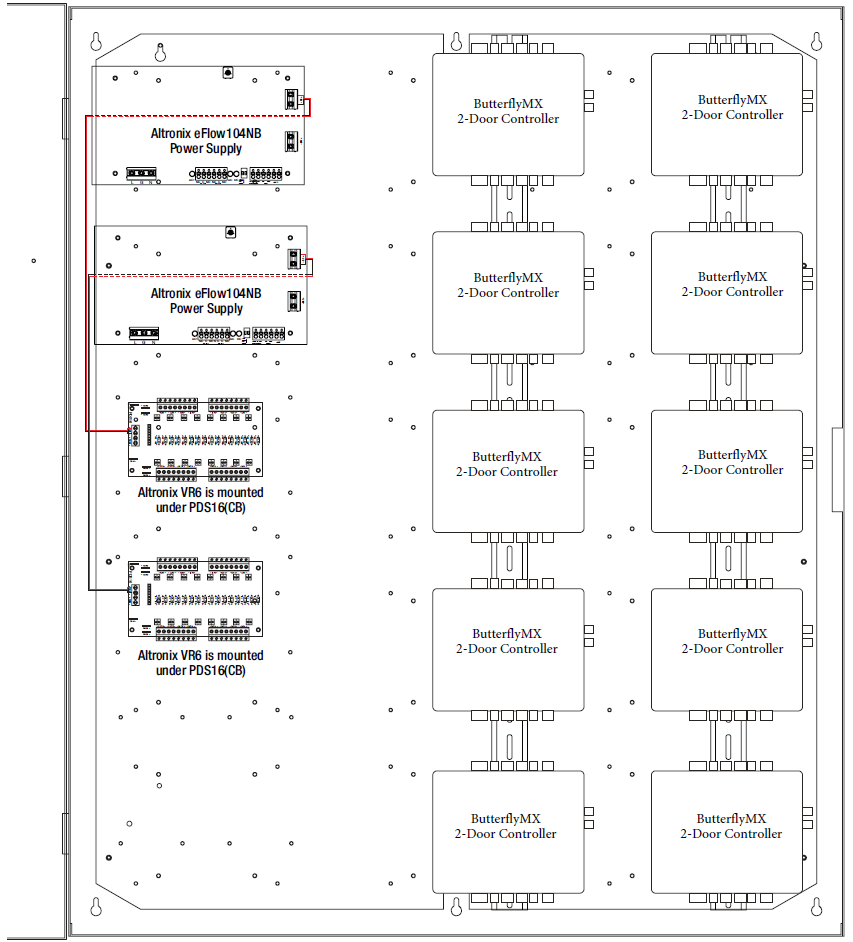

Note: The mechanical drawings, knockout layout, and wiring diagram (dual eFlow104NB power supplies, dual PDS16CB distribution modules with VR6 regulators mounted beneath, and ten 2-Door Controller connections) are graphical elements in the original PDF and are not reproduced in this text conversion.
