Installation Instructions & Cut Sheets

Kit Configurations

Controller Enclosure - Small

4 Door Enclosure Kit with Resettable Fuses (PTC) — Kit includes:

• Altronix Trove1M1WP enclosure with TM1X backplane
• One (1) eFlow4NB - Power Supply/Charger
• One (1) PD4ULCB – PTC Power Distribution Module

4 Door Enclosure Kit with Replaceable Fuses (Glass) — Kit includes:

• Altronix Trove1M1WP enclosure with TM1X backplane
• One (1) eFlow4NB - Power Supply/Charger
• One (1) PD4UL – Glass-Fuse Power Distribution Module

Controller Enclosure - Medium

10 Door Enclosure Kit with Resettable Fuses (PTC) — Kit includes:

• Altronix Trove2 enclosure with TDR2 DIN Rail backplane
• One (1) eFlow102NB - Power Supply/Charger
• One (1) PD8ULCB - PTC Power Distribution Module

10 Door Enclosure Kit with Replaceable Fuses (Glass) — Kit includes:

• Altronix Trove2 enclosure with TDR2 DIN Rail backplane
• One (1) eFlow102NB - Power Supply/Charger
• One (1) PD8UL - Glass-fuse Power Distribution Module

Controller Enclosure - Large

20 Door Enclosure Kit with Resettable Fuses (PTC) — Kit includes:

• Altronix Trove3 enclosure with TV3 DIN Rail backplane
• Two (2) eFlow104NB - Power Supply/Chargers
• Two (2) VR6 - Voltage Regulators
• Two (2) PDS16CB - Dual Input/Output PTC Power Distribution Modules

20 Door Enclosure Kit with Replaceable Fuses (Glass) — Kit includes:

• Altronix Trove3 enclosure with TV3 DIN Rail backplane
• Two (2) eFlow104NB - Power Supply/Chargers
• Two (2) VR6 - Voltage Regulators
• Two (2) PDS16 - Dual Input/Output Glass-Fuse Power Distribution Modules

Overview

Altronix/ButterflyMX Trove kits are pre-assembled and consist of Trove enclosures/backplanes with factory installed Altronix power supply/chargers and subassemblies. These kits also accommodate various combinations of ButterflyMX boards for up to twenty (20) doors in a single enclosure.

Configuration Chart

Installation Instructions

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction. Product is intended for indoor use only.

1. Remove backplane from enclosure. Do not discard hardware. If your application requires a raised backplane, re-mount it using metal spacers and screws (provided).
2. Mark and predrill holes in the wall to line up with the top three keyholes in the enclosure. Install two/three upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure's upper keyholes over the two/three upper screws; level and secure. Mark the position of the lower two/three holes. Remove the enclosure. Drill the lower holes and install the fasteners. Place the enclosure's upper keyholes over the upper screws. Install the lower screws and make sure to tighten all screws.

3. Mount included UL Listed tamper switch(es) (Altronix Model TS112 or equivalent) in desired location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately 2” from the right side (Fig. 1). Connect tamper switch wiring to the Access Control Panel input or the appropriate UL Listed reporting device. To activate alarm signal, open the door of the enclosure.



4. Connect unswitched AC power (120VAC 60Hz) to terminals marked [L, N]. Use 14 AWG or larger for all power connections. When power is applied, the "AC" LED on the power supply board will turn on. Minimum 0.25” spacing must be provided. Keep power-limited wiring separate from non-power-limited wiring (120VAC 60Hz Input, Battery Wires).

   CAUTION: Do not touch exposed metal parts. Shut branch circuit power before installing or servicing equipment. There are no user serviceable parts inside. Refer installation and servicing to qualified service personnel.
5. Measure voltage before connecting devices. This helps avoid potential damage.
6. Mount ButterflyMX boards to backplane (refer to configuration sections below).
7. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow4NB, eFlow102NB, eFlow104NB and corresponding Sub-Assembly Installation Guides for PD4ULCB, PD8ULCB, PDS16CB and VR6 for further installation instructions.

Please refer to the included corresponding Sub-Assembly Installation Guides for further information. All registered trademarks are property of their respective owners.

Controller Enclosure - Small: Configuration of ButterflyMX Modules

1. Mount ButterflyMX Controller to DIN Rail (Fig. 2).
2. Fasten backplane to Trove1WP enclosure utilizing screws (provided).

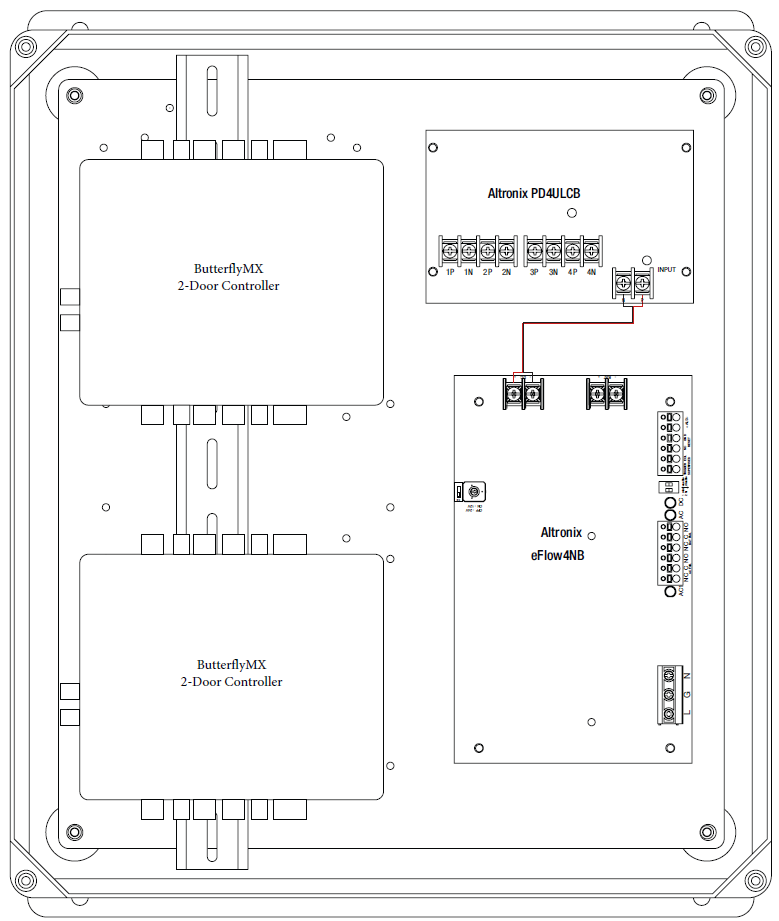

Layout (Fig. 2): eFlow4NB power supply (12V/24V selectable via dip switch: ON = 12V, OFF = 24V) with PD4ULCB distribution module and two ButterflyMX 2-Door Controllers.

Controller Enclosure - Medium: Configuration of ButterflyMX Modules

1. Mount ButterflyMX Controller to DIN Rail (Fig. 3).
2. Fasten backplane to Trove2 enclosure utilizing lock nuts (provided).

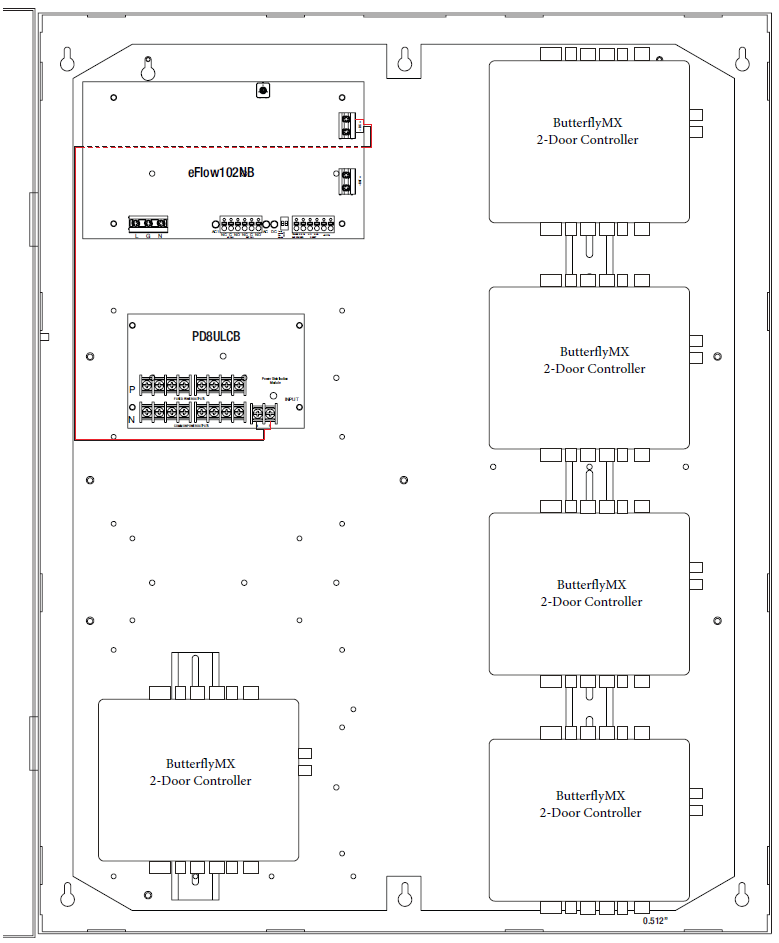

Layout (Fig. 3): eFlow102NB power supply with PD8ULCB distribution module and up to five ButterflyMX 2-Door Controllers.

Controller Enclosure - Large: Configuration of ButterflyMX Modules

1. Mount ButterflyMX Controller to DIN Rail (Fig. 4).
2. Fasten backplane to Trove3 enclosure utilizing lock nuts (provided).

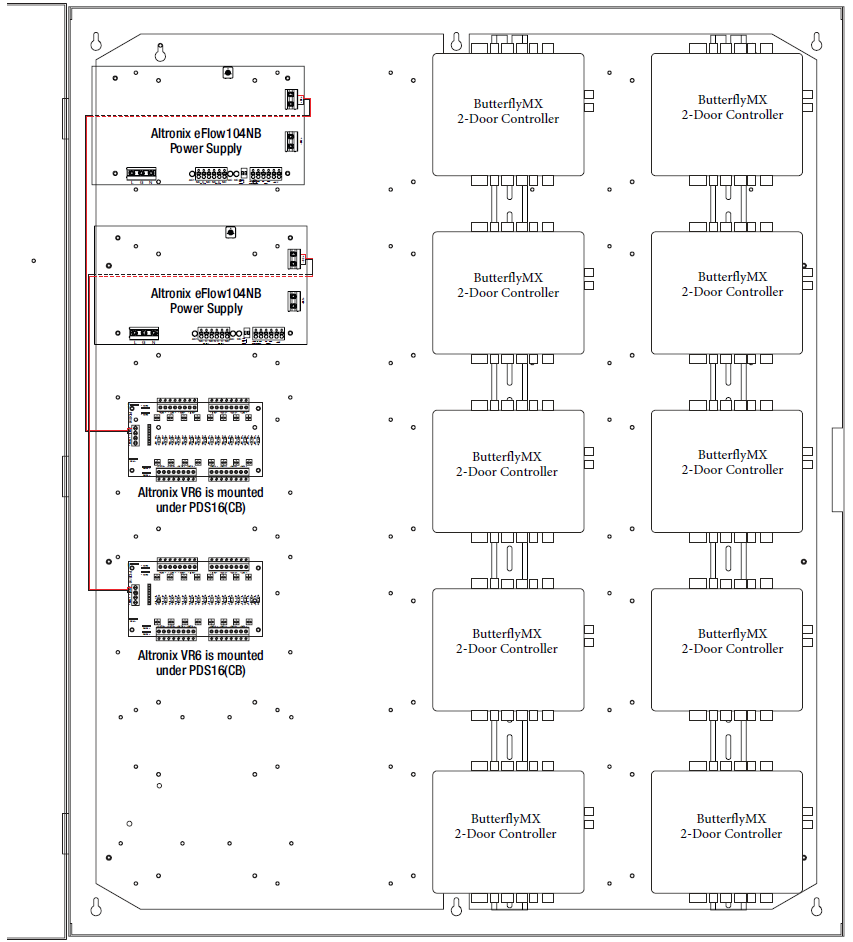

Layout (Fig. 4): Two eFlow104NB power supplies with two PDS16(CB) distribution modules (VR6 voltage regulators mounted underneath) and up to ten ButterflyMX 2-Door Controllers.

Enclosure Dimensions and Drawings

Controller Enclosure - Small

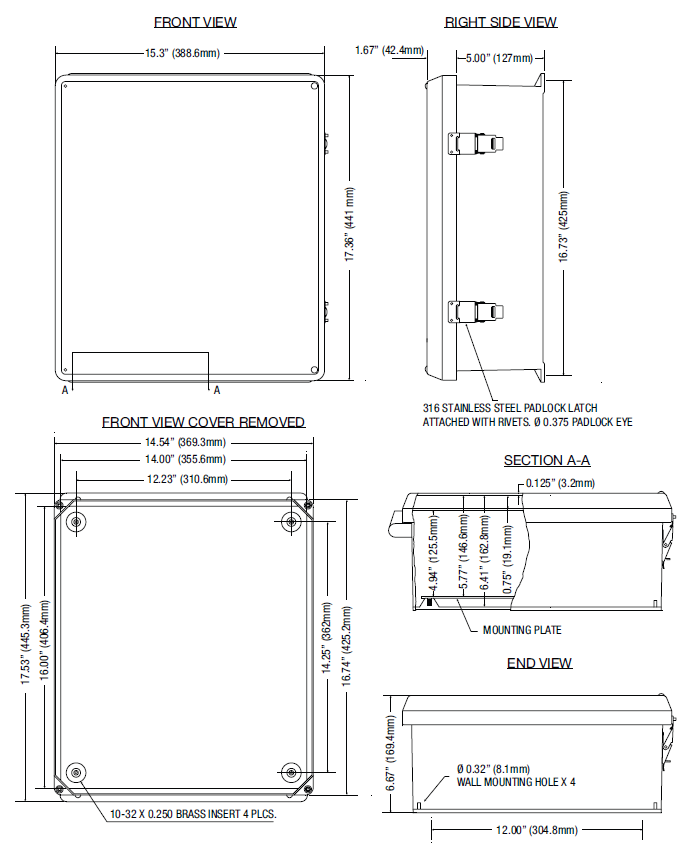

Enclosure Dimensions (H x W x D approximate): 17.53” x 15.3” x 6.67” (445.3mm x 388.6mm x 169.4mm)

• 316 stainless steel padlock latch attached with rivets; Ø 0.375 padlock eye
• 10-32 x 0.250 brass insert, 4 places
• Wall mounting holes: Ø 0.32” (8.1mm) x 4
• Mounting plate: 16.74” (425.2mm) x 14.54” (369.3mm); 0.125” (3.2mm)
• Reference dimensions: 17.36” (441mm), 16.73” (425mm), 16.00” (406.4mm), 14.25” (362mm), 14.00” (355.6mm), 12.23” (310.6mm), 12.00” (304.8mm), 6.41” (162.8mm), 5.77” (146.6mm), 5.00” (127mm), 4.94” (125.5mm), 1.67” (42.4mm), 0.75” (19.1mm)

Controller Enclosure - Medium

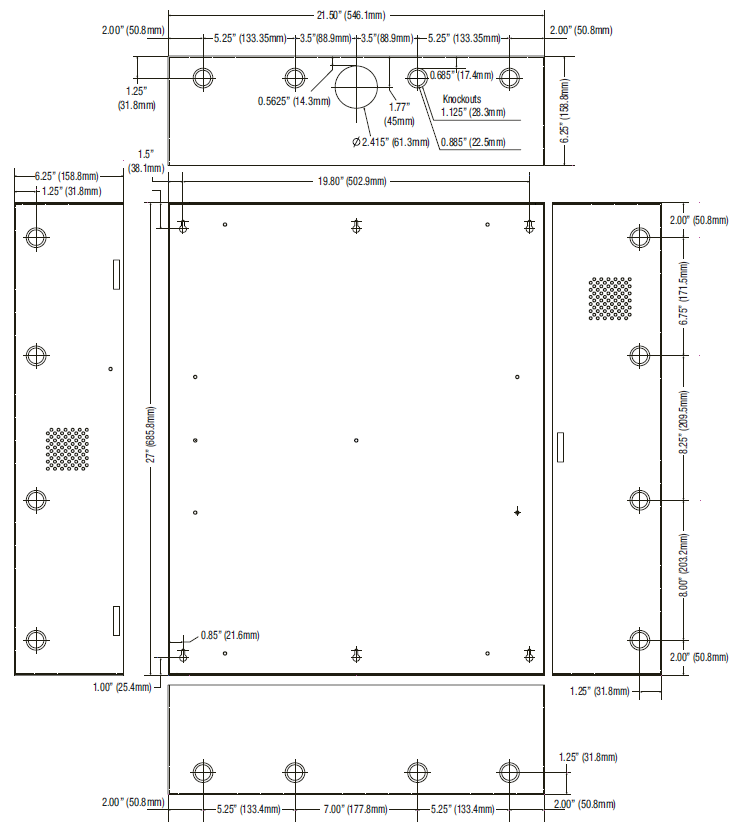

Enclosure Dimensions (H x W x D approximate): 27.25” x 21.5” x 6.5” (692.2mm x 552.5mm x 165.1mm)

• Knockouts: single 2.415” (61.3mm); doubles 1.125” (28.3mm) / 0.885” (22.5mm); references 1.77” (45mm), 0.85” (21.6mm), 0.685” (17.4mm), 0.5625” (14.3mm)
• Layout references: 27” (685.8mm), 21.50” (546.1mm), 19.80” (502.9mm), 8.25” (209.5mm), 8.00” (203.2mm), 7.00” (177.8mm), 6.75” (171.5mm), 6.25” (158.8mm), 5.25” (133.4mm), 3.5” (88.9mm), 2.00” (50.8mm), 1.5” (38.1mm), 1.25” (31.8mm), 1.00” (25.4mm)

Controller Enclosure - Large

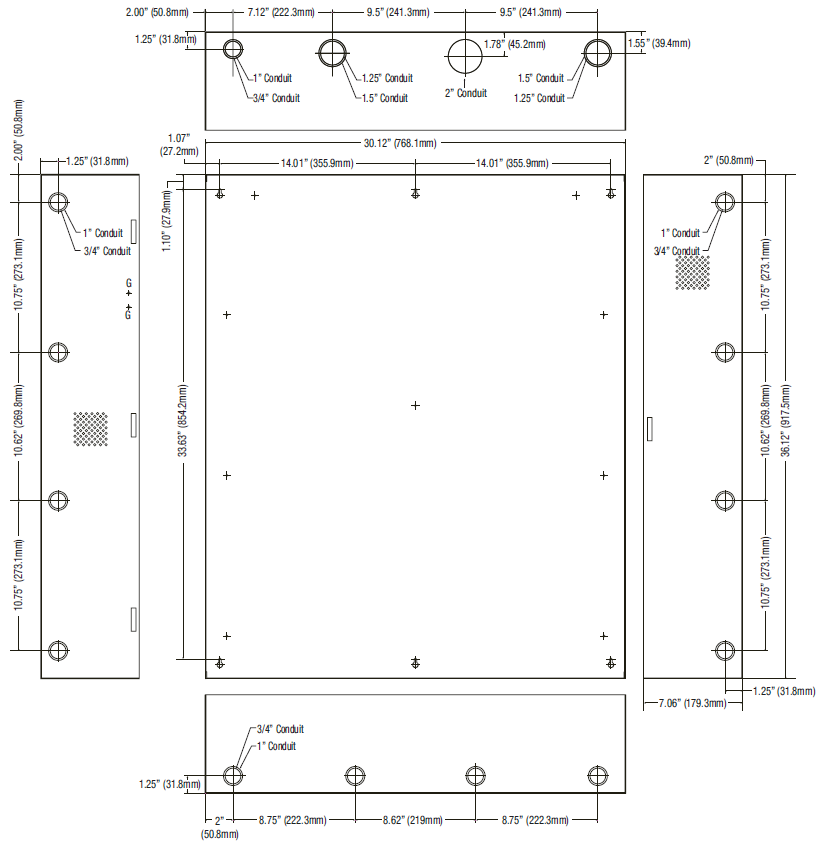

Enclosure Dimensions (H x W x D approximate): 36.12” x 30.125” x 7.06” (917.5mm x 768.1mm x 179.3mm)

• Conduit knockout sizes: 2”, 1.5”, 1.25”, 1”, and 3/4” positions
• Layout references: 33.63” (854.2mm), 30.12” (768.1mm), 14.01” (355.9mm) x2, 10.75” (273.1mm) x2, 10.62” (269.8mm), 9.5” (241.3mm) x2, 8.75” (222.3mm) x2, 8.62” (219mm), 7.12” (222.3mm), 2.00” (50.8mm), 1.78” (45.2mm), 1.55” (39.4mm), 1.25” (31.8mm), 1.10” (27.9mm), 1.07” (27.2mm)

Note: Figures 1–4 (tamper switch mounting, module configuration layouts, wiring diagrams) and the dimensioned mechanical drawings are graphical elements in the original PDF and are not reproduced in this text conversion.
