ButterflyMX Medium Controller Enclosure - Fact Sheet

Product Data Sheet

The ButterflyMX Controller Enclosure – Medium gives installers a standardized, professional solution for mid-sized multifamily, commercial, and multi-floor controller deployments. By consolidating enclosure, mounting, power, and wiring organization into one orderable system, it reduces custom design work, installation time, missing components, wiring errors, and future service calls while creating a cleaner, more secure, and easier-to-maintain installation.

Designed for five to ten doors, the enclosure includes a backplane, an integrated 12VDC, 10A power supply/charger, and an eight-output PTC- or glass-fuse-protected power distribution module. It accommodates up to five ButterflyMX 2-Door Controllers, with an organized layout that simplifies controller mounting, field wiring, cable management, power distribution, troubleshooting, and ongoing service access.

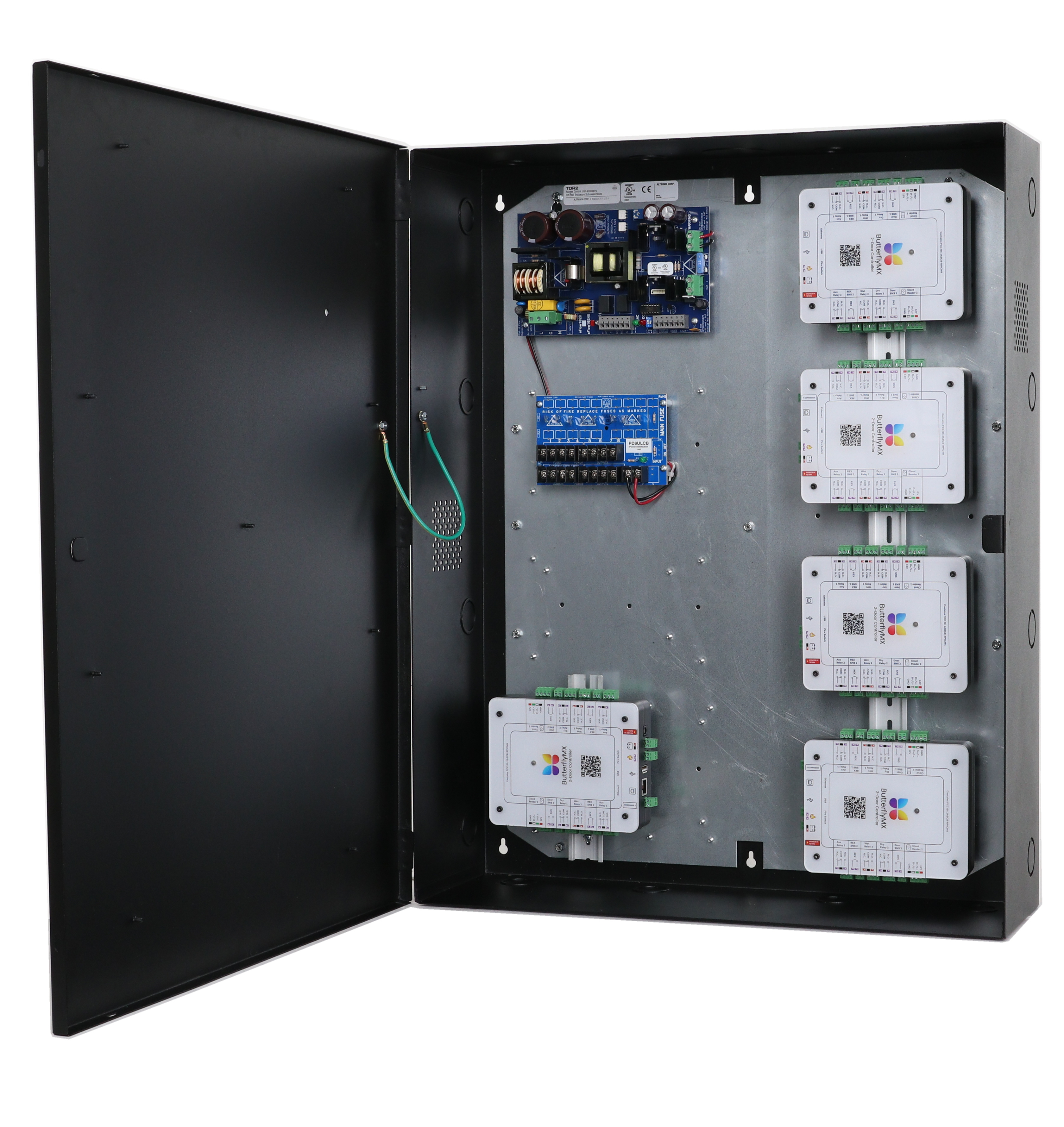

ButterflyMX Medium Controller Enclosure (ButterflyMX 2-Door Controllers are not included)

Key Features

  • 12VDC or 24VDC power supply/charger
  • Accommodates up to five (5) ButterflyMX modules
  • Supervision:
    • AC Fail
    • Low Battery and Battery Presence
    • Low power shutdown
  • Convenient knockout configuration:
    • One (1) single knockout 2.415” (2” Conduit)
    • Sixteen (16) double knockouts — 1.362” (1” Conduit) / 1.115” (3/4” Conduit)
  • 16 gauge galvanized steel backplane simplifies board layout and wire management
  • Enclosure accommodates up to four (4) 12VDC/7AH batteries
  • Agency Listings:
    • All Altronix components of this Trove kit are UL Listed sub-assemblies. Please refer to the Sub-Assembly Installation Guides for further information
    • UL: UL294 - Access Control System
    • cUL: CAN/ULC - s319-05 - Electronic Access Control Systems
    • CE European Conformity
  • Lifetime Warranty (for Altronix Power Supply/Chargers and Sub-Assemblies only)

Specifications

Power Supply (eFlow102NB)

Input Voltage120VAC, 60Hz, 3.5A
Input Fuse5A/250V
Output Voltage12VDC @ 10A
Auxiliary1A (unswitched)
ProtectionOvervoltage protection. Filtered and regulated

Battery Charging

Capacity12VDC/12AH (4 within enclosure); 40AH/65AH (requires separate enclosure)
TypeSealed lead acid or gel type
FailoverUpon AC loss, instantaneous

Batteries are sold separately.

Fire Alarm Disconnect

SupervisedLatching or non-latching
EOL10K Resistor

Supervision

AC FailureForm “C” contacts
BatteryForm “C” contacts
Low DC Power ShutdownShuts down DC output terminals if battery voltage drops below 71–73% for 12V units and 70–75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Indicators (LED)

AC Input120VAC is present
DC OutputPowered
BatteryDischarged or not connected

Power Distribution Module (PD8ULCB)

Input Voltage12VDC from eFlow102NB
Output Voltage12VDC
PTCs2.5A
Indicators (LED)Green LED — DC Output

Small Controller Enclosure Certifications

Agency ListingsCE European Conformity

Physical and Environmental

Enclosure Dimensions (H x W x D)27.25” x 21.5” x 6.5” (692.2mm x 546.1mm x 165.1mm)
Shipping Dimensions32.5” x 26.5” x 11.125” (825.5mm x 673.1mm x 282.6mm)
Product Weight (approx.)39.6 lb. (18 kg)
Shipping Weight (approx.)43.35 lb. (19.66 kg)
Operating Temperature0ºC to 49ºC (32ºF to 120ºF)
Storage Temperature–20ºC to 70ºC (–4ºF to 158ºF)
Relative Humidity85% +/– 5%
BTU/Hr (approx.)61 BTU/Hr.

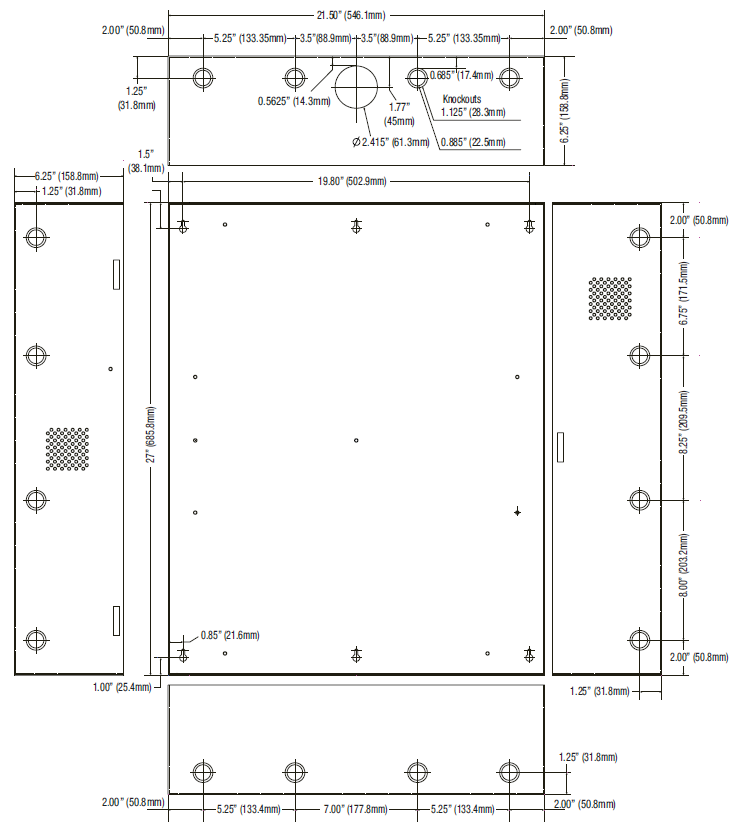

Dimensions and Drawing (Key Callouts)

  • Overall: 27.25” (692.2mm) H x 21.5” (546.1mm) W x 6.5” (165.1mm) D
  • Backplane/layout reference: 27” (685.8mm) x 19.80” (502.9mm)
  • Knockout dimensions: single 2.415” (61.3mm); doubles 1.125” (28.3mm) / 0.885” (22.5mm), with reference dims 1.77” (45mm), 0.685” (17.4mm), 0.5625” (14.3mm), 0.85” (21.6mm), 0.512”
  • Other reference dimensions: 8.25” (209.5mm), 8.00” (203.2mm), 7.00” (177.8mm), 6.75” (171.5mm), 6.25” (158.8mm), 5.25” (133.4mm), 3.5” (88.9mm), 2.00” (50.8mm), 1.5” (38.1mm), 1.25” (31.8mm), 1.00” (25.4mm)

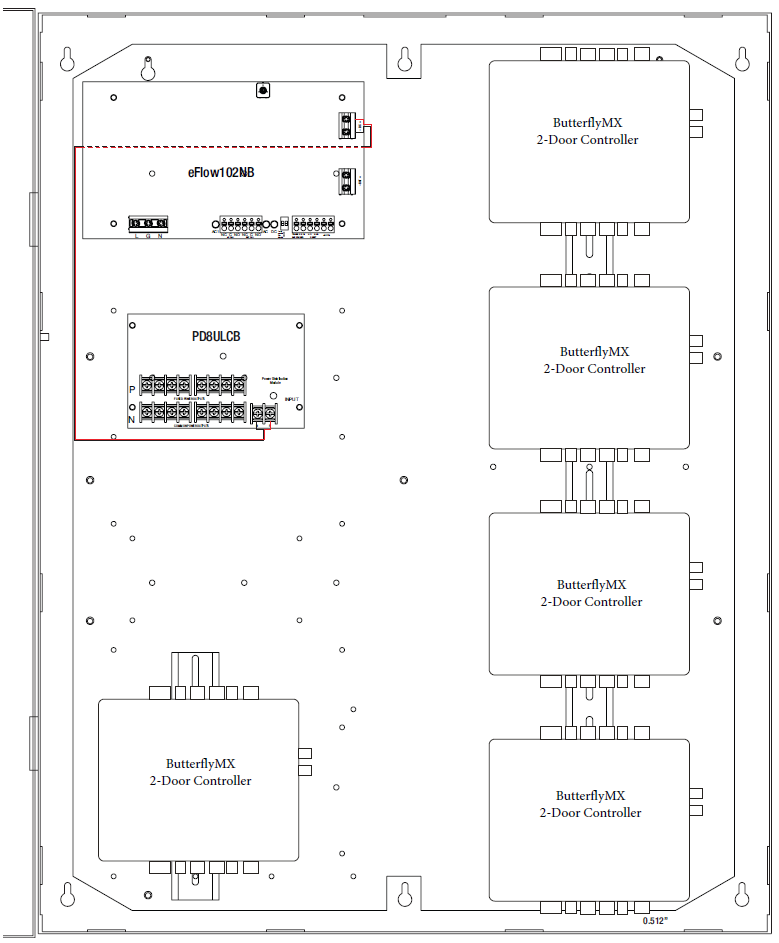

Note: The mechanical drawings, knockout layout diagram, and wiring diagram (eFlow102NB, PD8ULCB, and five 2-Door Controller connections) are graphical elements in the original PDF and are not reproduced in this text conversion.
