ButterflyMX Small Controller Enclosure - Fact Sheet

Product Data Sheet

The ButterflyMX Small Controller Enclosure gives installers a standardized, professional way to deploy ButterflyMX access control at gates, garages, guard shacks, detached buildings, and other small or remote entrances. By combining enclosure, mounting, power, and wiring organization into one solution, it reduces custom design work, installation time, missing components, wiring errors, and future service calls while delivering a cleaner, more secure installation.

Designed for one to four doors, the NEMA-rated enclosure includes a backplane, an integrated 12VDC or 24VDC, 4A power supply/charger (factory set to 12VDC) and a four-output PTC- or glass-fuse-protected power distribution module. It accommodates up to two ButterflyMX 2-Door Controllers, or one 2-Door Controller and one ButterflyMX Cellular Router, with an organized layout that simplifies mounting, field wiring, cable management, and service access.

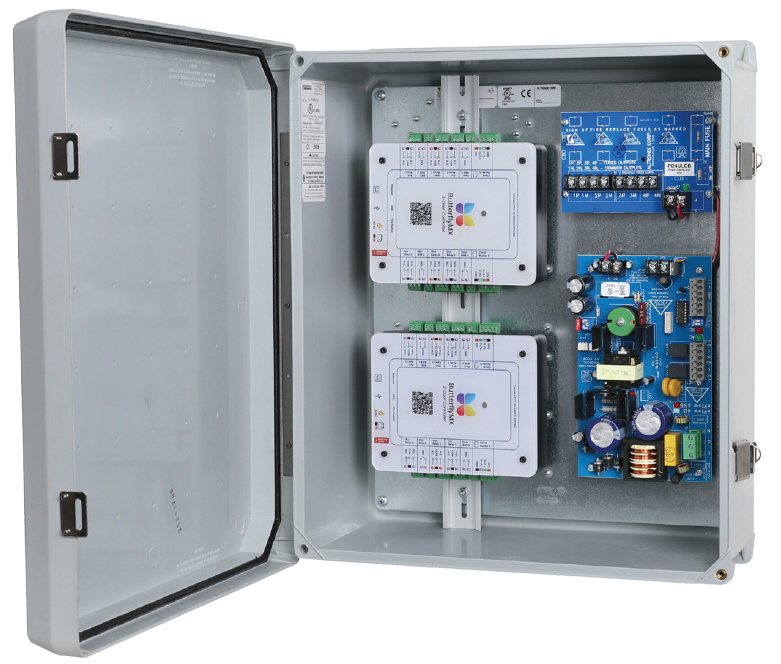

Small Controller Enclosure (ButterflyMX 2-Door Controllers are not included)

Key Features

  • 12VDC or 24VDC power supply/charger
  • Accommodates up to two (2) ButterflyMX 2-Door Controllers
  • Supervision:
    • AC Fail
    • Low Battery and Battery Presence
    • Low power shutdown
  • 16 AWG galvanized steel backplane simplifies board layout and wire management
  • Enclosure NEMA4/4X, IP66 rated enclosure
  • Hot compression molded, halogen free, self extinguishing fiberglass reinforced polyester
  • Stainless steel continuous hinge and stainless steel padlockable latches
  • Integral flanges simplify wall or pole mounting
  • Agency Listings: CE European Conformity
  • Lifetime Warranty (on Altronix Power Supply/Chargers and Sub-Assemblies only)

Specifications

Power Supply (eFlow4NB)

Input Voltage120VAC, 60Hz, 3.5A
Fuse Rating5A/250V
Output Voltage12VDC or 24VDC
Output Current4A continuous
OtherOvervoltage protection. Filtered and regulated

Battery Charging

Capacity12VDC/7AH (2 within enclosure); 40AH/65AH (requires separate enclosure)
TypeSealed lead acid or gel type
FailoverUpon AC loss, instantaneous

Note: Batteries are sold separately.

Supervision

AC FailureForm “C” contacts
BatteryForm “C” contacts
Low DC Power ShutdownShuts down DC output terminals if battery voltage drops below 70–75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Indicators (LED)

Input120VAC is present
DC OutputPowered
BatteryDischarged or not connected

Power Distribution Module (PD4ULCB)

Input Voltage12VDC from eFlow4NB
Output Voltage12VDC
Output PTCs2.5A
Indicators (LED)Green LED — DC Output

Small Controller Enclosure Certifications

Agency ListingsCE European Conformity

Physical and Environmental

Enclosure Dimensions (H x W x D)17.53” x 15.3” x 6.67” (445.3mm x 388.6mm x 169.4mm)
Shipping Dimensions21.375” x 14.5” x 9.5” (542.9mm x 374.7mm x 241.3mm)
Product Weight (approx.)13.9 lb. (6.3 kg)
Shipping Weight (approx.)15.4 lb. (7.0 kg)
Operating Temperature0ºC to 49ºC (32ºF to 120ºF)
Storage Temperature–20ºC to 70ºC (–4ºF to 158ºF)
Relative Humidity85% +/– 5%
BTU/Hr (approx.)12VDC: 46 BTU/Hr.

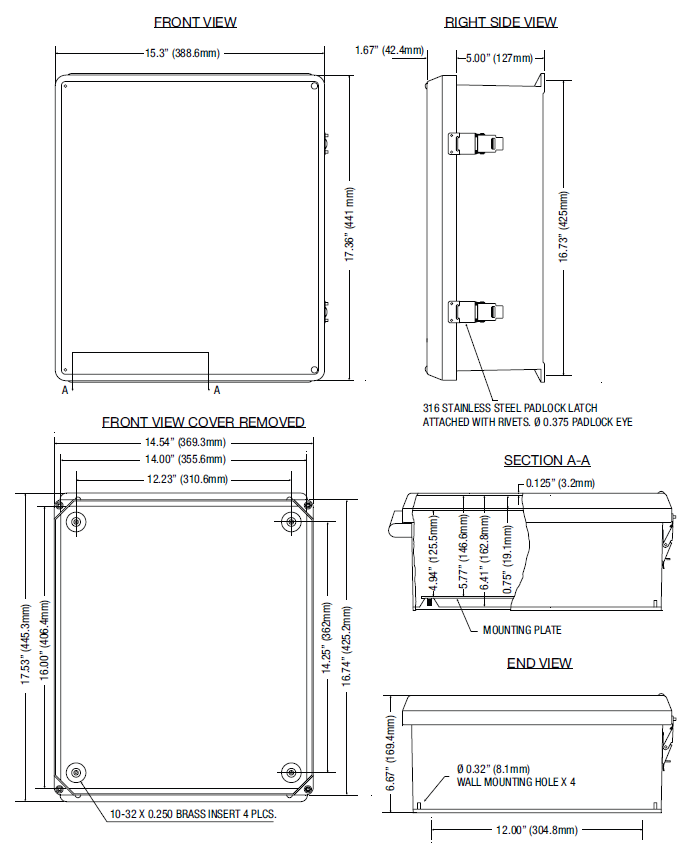

Dimensions and Drawing (Key Callouts)

  • 316 stainless steel padlock latch attached with rivets; Ø 0.375 padlock eye
  • 10-32 x 0.250 brass insert, 4 places
  • Wall mounting holes: Ø 0.32” (8.1mm) x 4
  • Overall: 17.53” (445.3mm) H x 15.3” (388.6mm) W x 6.67” (169.4mm) D
  • Mounting plate: 16.74” (425.2mm) x 14.54” (369.3mm); 0.125” (3.2mm) thickness
  • Other reference dimensions: 17.36” (441mm), 16.73” (425mm), 16.00” (406.4mm), 14.25” (362mm), 14.00” (355.6mm), 12.23” (310.6mm), 12.00” (304.8mm), 6.41” (162.8mm), 5.77” (146.6mm), 5.00” (127mm), 4.94” (125.5mm), 1.67” (42.4mm), 0.75” (19.1mm)

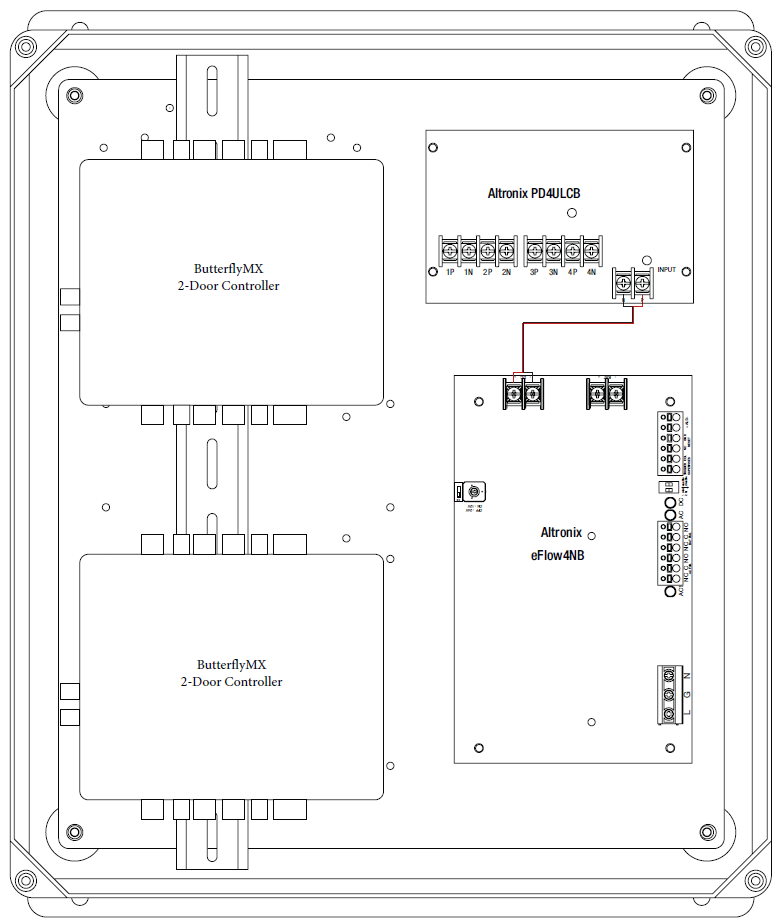

Note: Front view (cover removed), right side view, end view, and Section A-A drawings, plus the wiring diagram (eFlow4NB, PD4ULCB, and 2-Door Controller connections), are graphical elements in the original PDF and are not reproduced in this text conversion.
