Product Data Sheet
Managed cellular connectivity for ButterflyMX access points where wired internet is unavailable, impractical, or needs a reliable backup
The ButterflyMX Cellular Router combines preconfigured networking hardware, an activated SIM, a predictable cellular subscription, and remote management into one solution supported by ButterflyMX. Connect remote gates, garages, guard shacks, and detached buildings without trenching or adding a new ISP circuit - or keep critical entrances online when the property network goes down.
PRIMARY OR FALLBACK CONNECTIVITY Use cellular as the primary internet connection at remote or exterior entrances, or as backup connectivity for high-priority access points during a property internet outage. MANAGED SOLUTION Ships with a pre-installed, activated SIM and one ButterflyMX support path - no separate carrier accounts to manage. REMOTE MANAGEMENT Includes a 5-year Remote Management System (RMS) package to remotely monitor router health and troubleshoot many issues without an onsite visit. EASY INSTALLATION Indoor, outdoor, and controller-enclosure kits match the environment and available enclosure - no trenching, conduit, or separate ISP (internet service provider) installation. PREDICTABLE PRICING One fixed monthly T-Mobile cellular connectivity subscription per connected router. AUTOMATIC FAILOVER Configurable wired-to-cellular failover for supported deployments. | SUPPORTED DEVICES:
CELLULAR SUBSCRIPTION:
IMPORTANT: Cameras and Camera Gateways are not supported at launch. Performance depends on power, carrier availability, signal strength, antenna placement, and site network design. |

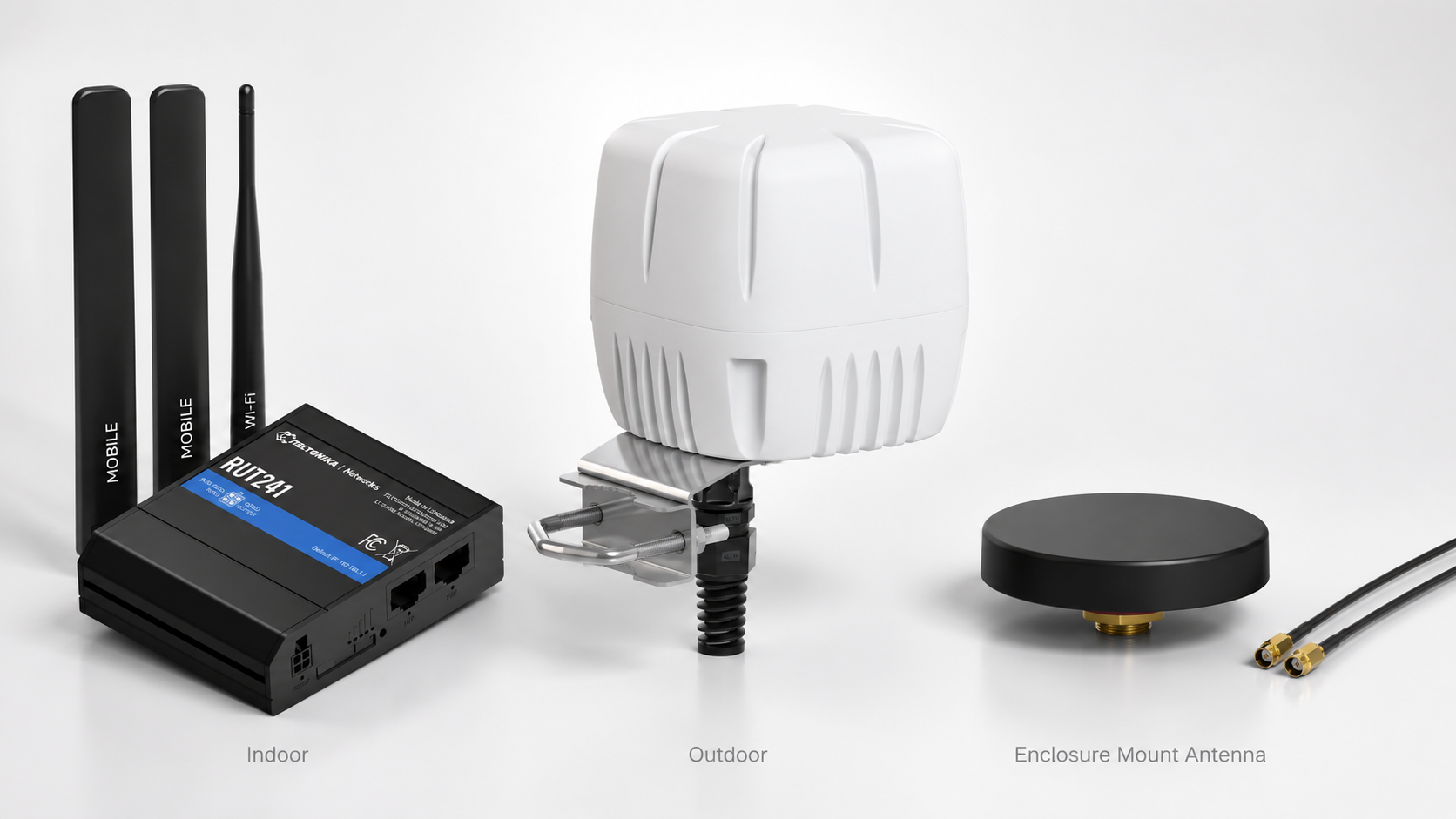

CHOOSE THE RIGHT INSTALLATION KIT
CELLULAR ROUTER – INDOOR Best for indoor controller deployments or protected interior locations.
| CELLULAR ROUTER – OUTDOOR Best for primary connectivity at exterior or remote access points.
| CELLULAR ROUTER – ENCLOSURE KIT Add-on kit for mounting a router inside a ButterflyMX controller enclosure.
|
TECHNICAL SPECIFICATIONS:
| Model | Indoor | Outdoor | Enclosure Kit |
| Recommended use | Indoor / fallback connectivity | Exterior primary connectivity | Router mounted in enclosure |
| Typical locations | Electrical room, IDF, indoor building | Gate, garage, guard shack, detached building | Controller enclosure |
| Router included | Yes | Yes | No – add-on only |
| Remote management | 5-year RMS package | 5-year RMS package | Same as router kit |
| SIM | Pre-installed, activated | Pre-installed, activated | — |
| External antenna | Standard router antennas | Outdoor antenna/enclosure | Bolt-mount antenna |
| Mounting | Surface mount | Pole/wall mount | DIN rail inside enclosure |
| Supported devices | Intercoms; 2-Door Controllers | Intercoms; 2-Door Controllers | Same as router kit |
| Cellular subscription | T-Mobile Cellular Connectivity subscription required for each connected router | ||
