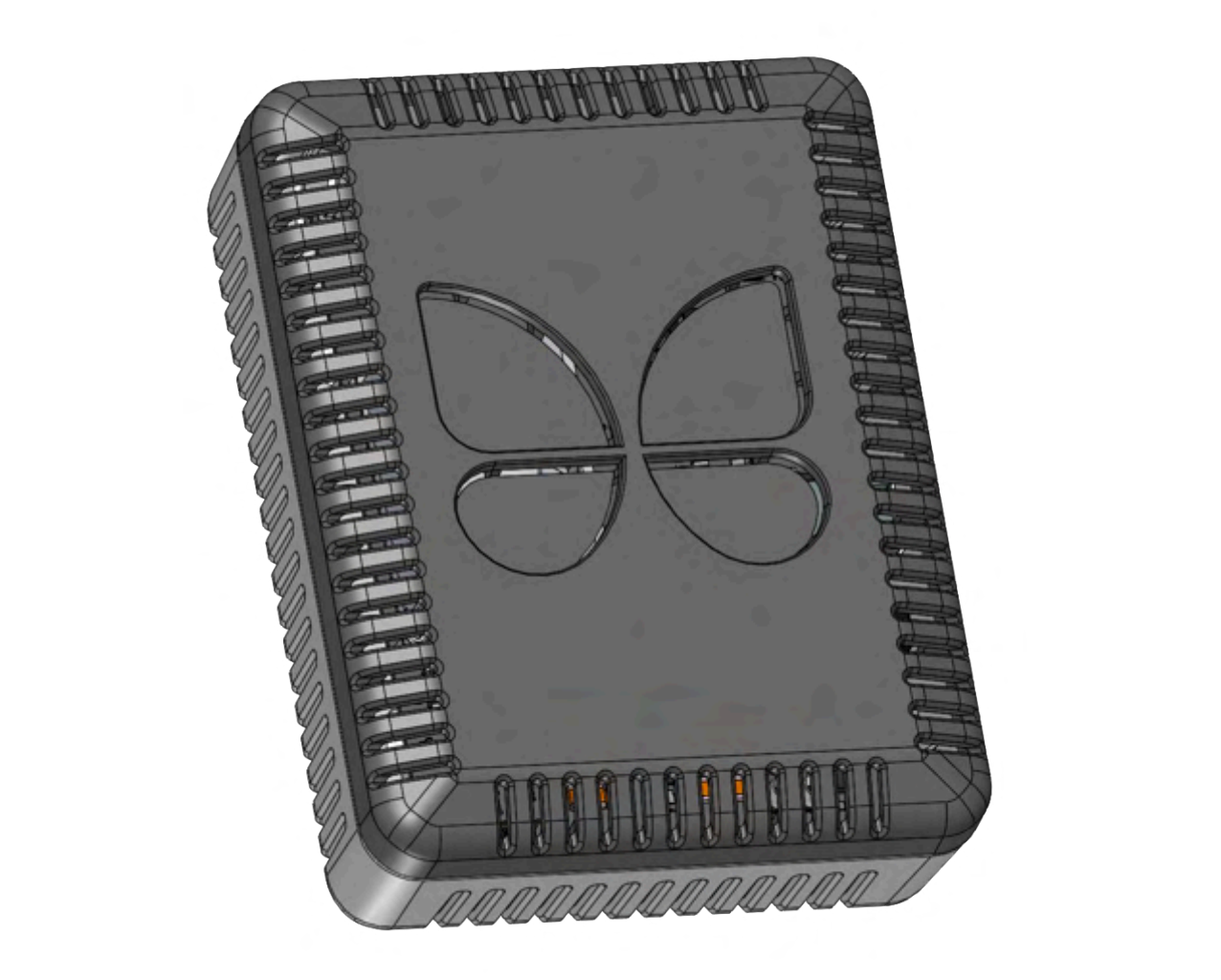

Note: Images are not to scale.
Specifications
| Specification | AI Camera Gateway |
|---|---|
| Dimensions | 7.15 in (182 mm) L x 5.51 in (140 mm) W x 2.3 in (58 mm) H |
| Weight | 0.69 lb (0.31 kg) |
| Processor | NVIDIA® Jetson Orin Nano™ |
| Onboard Storage | Baseline model capacity = 1TB SSD, ~7 days of storage for 10 cameras |
| Connectivity | Ethernet, 10/100/1000 Mbps |
| Ports | 1 Ethernet Jack |
| Power Supply | 12V/5A via DC Jack |
| Power Consumption | Up to 40W |
| Temperature Range | Ambient, recommended 50°F to 122°F (10°C to +50°C) |
| Installation Requirements | Must be installed in a weatherproof, secure location |
| NDAA Complaint | Yes |
Version: v2 (updated 6/30/26)
©2026 ButterflyMX, Inc.
